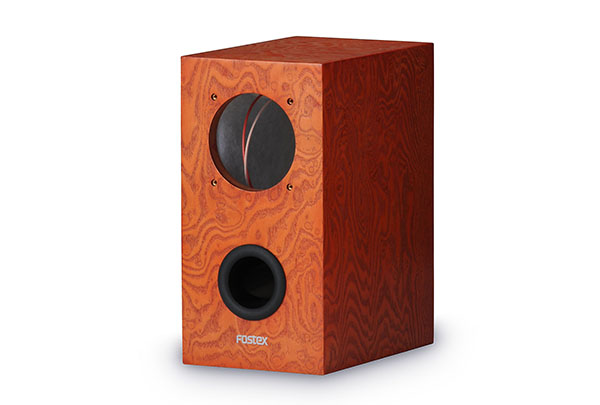

YK103-Sol
enclosureExclusive for FE103-Sol
High-quality sound speaker box.
Bass-reflex speaker box exclusively for FE103-Sol.
Features
Delicate and expressive music reproduction
The FE103-Sol’s excellent sound quality and more delicate and expressive music reproduction can be easily enjoyed. Assembly is simple: simply connect the speaker unit terminals to the internal wiring and attach the speaker unit with the provided screws.
Bird’s-eye maple veneer finish / Persimmon orange paint Bird’s-eye maple is used for the veneer. The cabinet is finished with a subtle shade of color created by the persimmon orange paint and the grain of the wood veneer, making it ideal for the FE103-Sol.
The veneer is made of natural wood, so please note that the grain pattern and the color of the paint may vary from one product to another.
MDF cabinet The speaker box uses t15 MDF for the baffle, top, bottom, and sides, and t12 MDF for the back plate to release unwanted vibrations and optimize the strength distribution throughout the speaker box. This results in a highly articulate and richly resonant sound quality.
Gold-plated copper terminals and OFC coaxial stranded wires In order to avoid deterioration of music signals as much as possible, gold-plated copper terminals with minimal contact loss are used for the input terminals. OFC coaxial stranded wires are used for internal wiring to prevent degradation of sound quality from the input terminal to the speaker units.
Specifications
Main Specifications
form (something takes) | bass-reflex |
---|---|
External dimensions | 152(W)×296(H)×239(D) mm (Terminal not included) |
Internal volume t | 6.7L |
fb | 72Hz |
mass | 3.1kg |
material properties | MDF t15 (baffle, top and bottom sides), MDF t12 (back plate) |
being finished | Bird’s eye maple veneer finish |
Paint color | persimmon orange |
Compatible units | FE103-Sol (8)/(16), FE103En |
accessory | M4 screw x 4 pcs, Washer x 4 pcs, L wrench x 1 pc |
