Bass Reflex type
Discontinued
YK103A
Bass reflex speaker box
YK103A is already equipped with terminals, internal wiring, and sound-absorbing material for sound quality adjustment. By simply connecting the internal wiring to the FE103A and attaching it with the included bolts, you can easily enjoy fine and pure sound quality, well-balanced and high-quality bass, and music reproduction with a wide dynamic range.
Limited quantity available
Number of units to be distributed: 100 (pairs)
Features
- The FE103A is made of a combination of solid ash and linden plywood for the enclosure material, and solid ash is also used for the ducts to achieve a richer sound and natural reverberation.
- The beautifully grained tamo wood veneer is used for the finish. The bright color tone harmonizes with a variety of interiors.

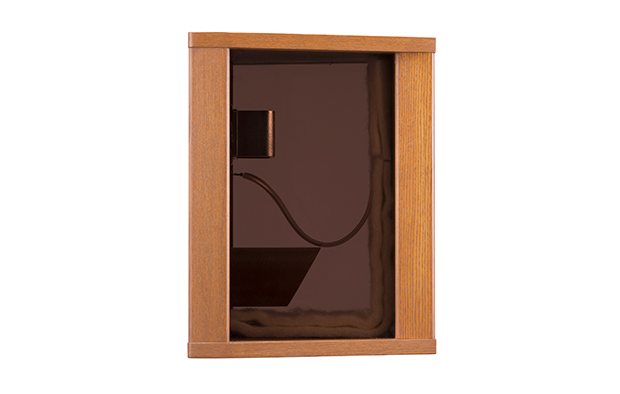

- The sides are made of translucent smoke-colored acrylic panels, allowing the interior to be seen.
- The input terminal is a gold-plated terminal compatible with banana plugs, and our SFC103 is used for internal wiring to reduce sound quality degradation from the input terminal to the speaker unit.
Specifications
Main Specifications
| form (something takes) | bass-reflex |
|---|---|
| External dimensions | 200 (W) × 320 (H) × 250 (D) mm |
| mass | 3.3 kg |
| internal volume | 6.2 L |
| fb | Approx. 69 Hz |
| material properties | Solid ash, linden plywood/t15, acrylic |
| finishing touches | Veneer of tamo wood + Coating |
| Compatible units | FE103A |
| accessory | Washers × 8 pcs. M4 L20 cap bolt x 8 pcs. L wrench × 1 pc Instruction manual × 1 |
External dimensions
frequency response
